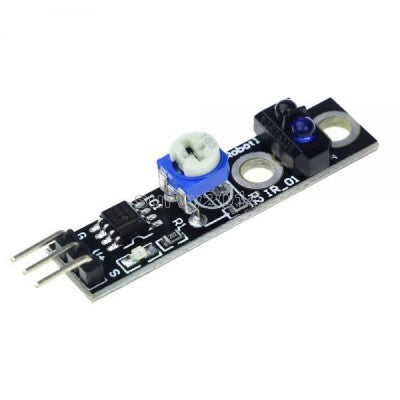

Single Channel Line Tracking Sensor Module

This Single Channel Line Tracking Sensor Module is a great detector for a line-following robot. Potentiometer to adjust the sensitivity of the individual sensors.

TCRT5000 Single Channel Line Tracking Sensor Module is a carrier board for TCRT5000 reflective optical sensor. Although it is designed for use with line-following robots, it can be used in mini-sumo robots for line control. The board has a digital output.

The concept of working of line follower sensor is related to light. We use here the behavior of light at the black and white surface. When light fall on a white surface it is almost fully reflected and in case of black surface light is completely absorbed. This behavior of light is used in building a line follower sensor.

Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0V and VIN (which is typically 5V) as a function of the reflected IR. The lower output voltage is an indication of greater reflection.
