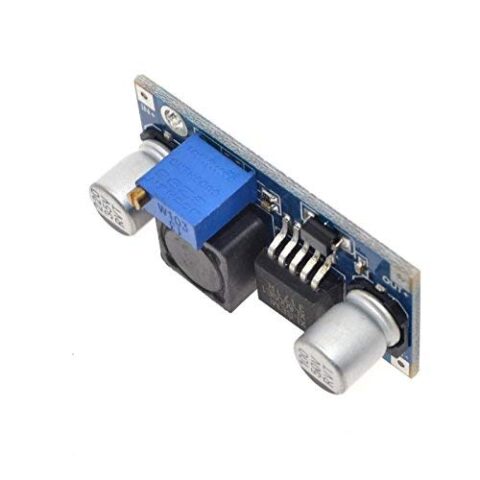

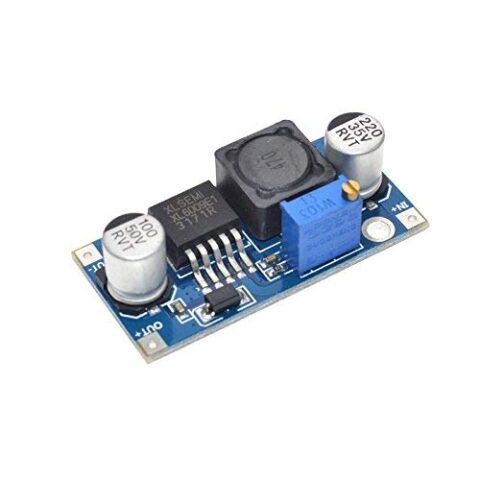

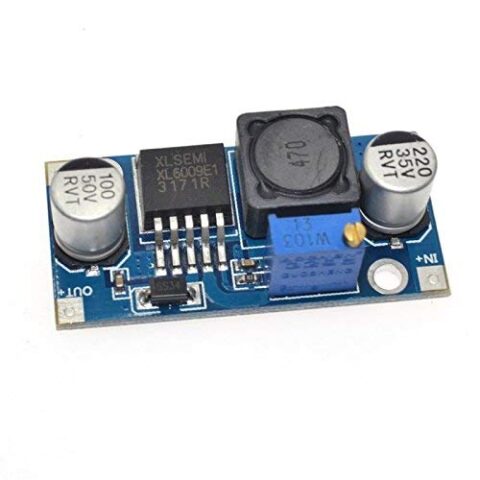

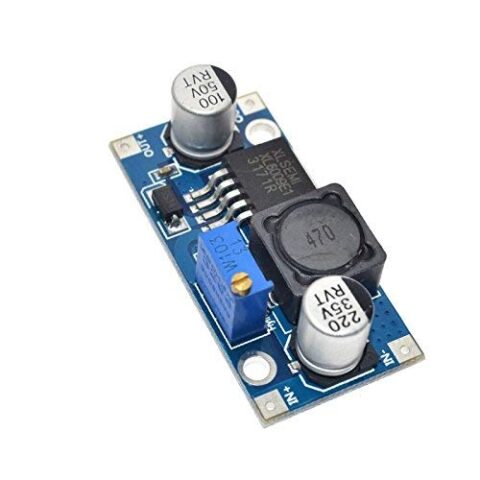

CA-6009 DC-DC Adjustable Step-up Boost Power Converter Board Module 3V-32V to 5V-35V

Technical parameters Model Specification:Automatic Buck module Module Properties:Non- isolated boost (BOOST) Rectification:Non- Synchronous Rectification Input Range:3.8V- 32V Output Range:1.25V-35V Input Current:3A ( max ),no-load 18mA (5V input , 8V output, no-load is less than 18mA. Higher the voltage , the greater the load current . ) Conversion efficiency:<94% ( greater the pressure, the lower the efficiency) Switching frequency:400KHz Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple ) Load Regulation:± 0.5% Voltage Regulation:± 0.5% Operating Temperature:-40 -+85 Dimensions:48mm * 25mm * 14mm ( L * W * H )
