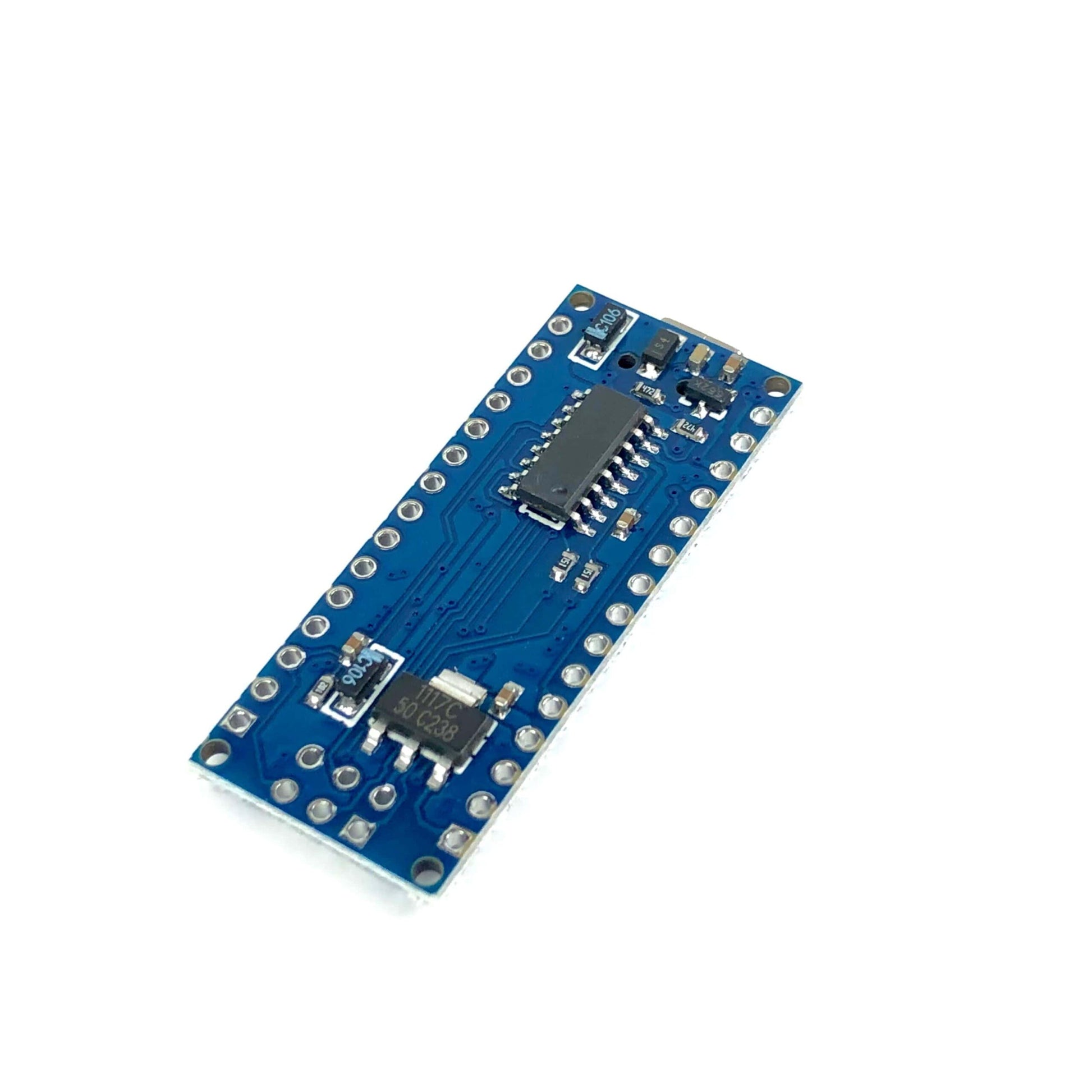

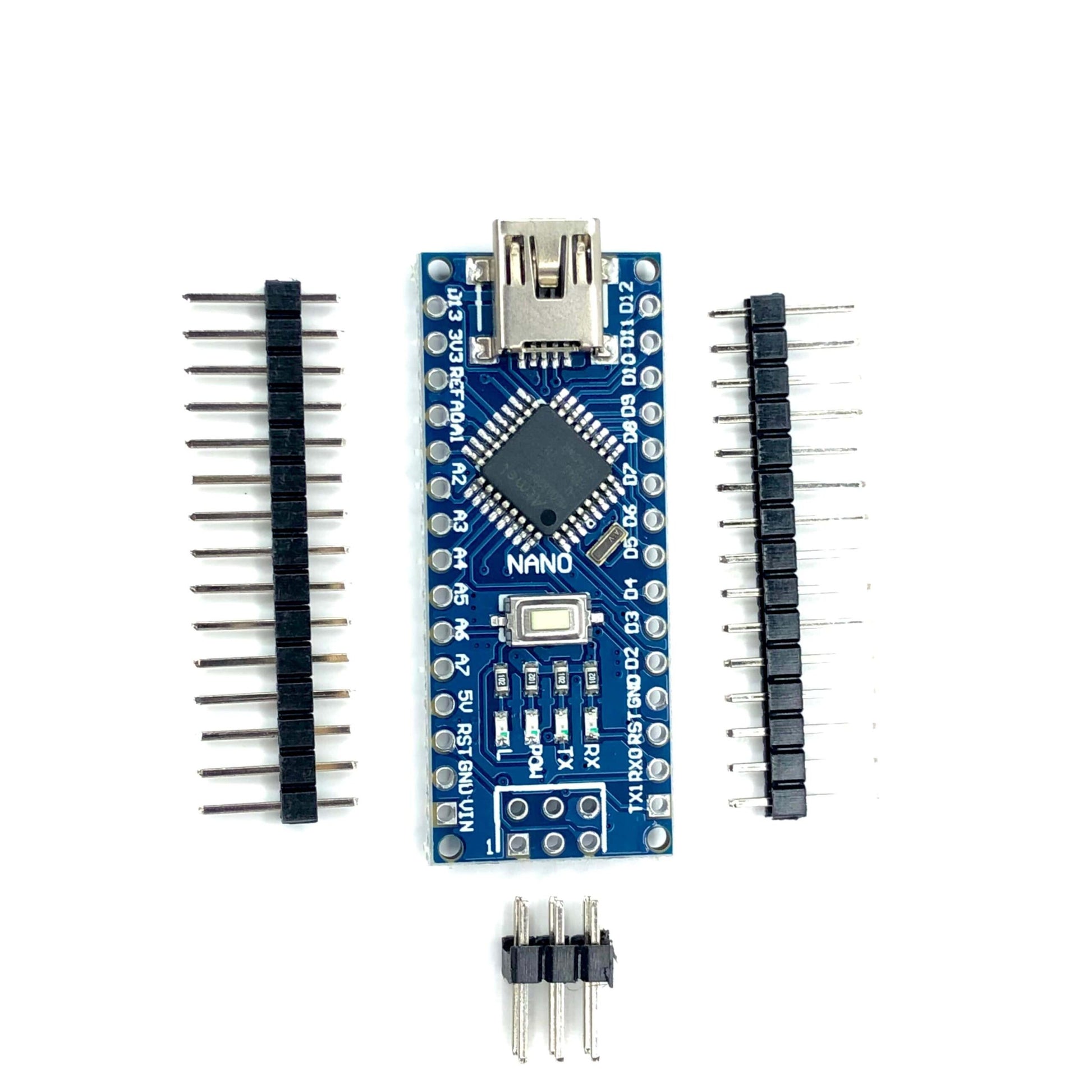

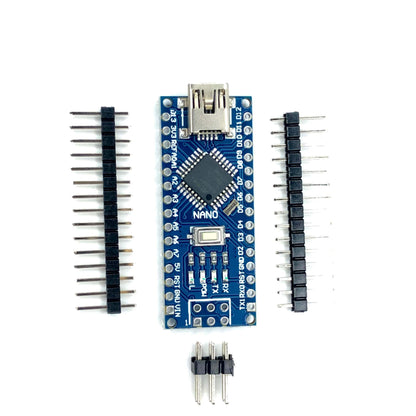

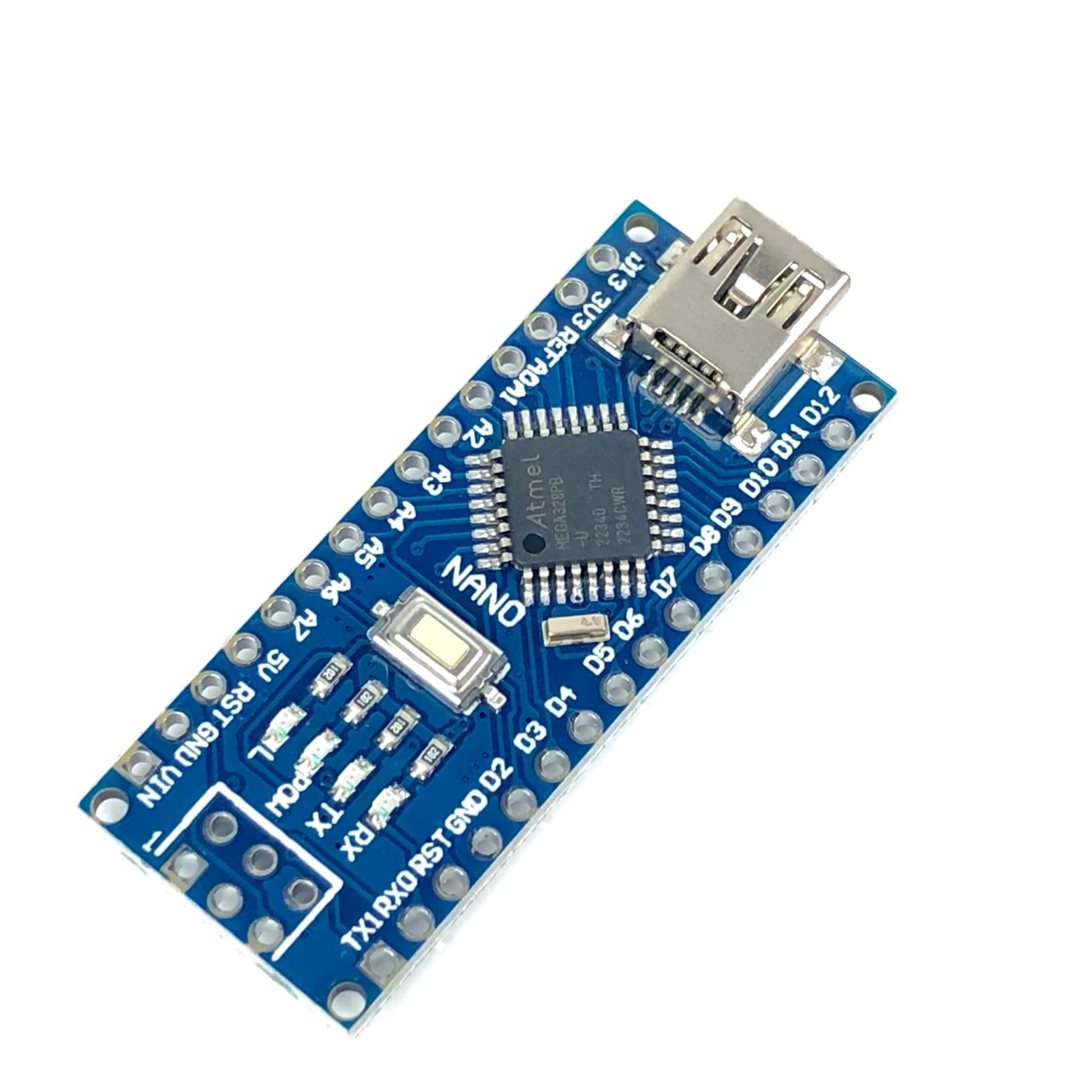

Arduino Nano 3.0 with CH340 Chip (Unsoldered)

This is a ARDUIN0 Nano V3.0, Nano Board ATmega328P 5V 16M Micro-Controller Board with USB Cable. The upgraded ARDUIN0 nano is a small, complete, breadboard-friendly and high quality board based on the atmega328p-au mcu. It supports isp download, usb download and usb power.

Specification:

• Operating voltage(logic level): 5v.
• 8 analog inputs ports: A0 ~ a7.
• 14 digital input / output ports: Tx,rx,d2 ~ d13.
• 6 pwm ports: D3, d5, d6, d9, d10, d11
• +5V to AREF jumper.
• Auto-sensing/switching power input.
• Small mini-B USB for programming and serial monitor.
• ICSP header for direct program download.
• Standard 0.1” spacing DIP (breadboard friendly).
• Manual reset switch.
